    Yamaha LAGENDA 115Z

    *Subject to price changes *Subject to stock and color availability *Free delivery within KL/Selangor Area

    RM6,350.00
    i h
    shipping.estimateshippingpopup.shiptotitle
    *
    *
    shipping.estimateshippingpopup.chooseshippingtitle
    shipping.estimateshippingpopup.shippingoption.name
    shipping.estimateshippingpopup.shippingoption.estimateddelivery
    shipping.estimateshippingpopup.shippingoption.price
    shipping.estimateshippingpopup.noshippingoptions

    Yamaha LAGENDA 115Z Feature

    ALL-NEW ENGINE. 20% IMPROVEMENT FROM THE PREVIOUS MODEL

    New air-cooled 4-stroke Single Over Head Cam, 115cc engine with fuel injection. A re-designed intake and exhaust system for optimal power and performance, yet low in fuel consumption.

    NEW LAMP CLUSTER

    Featuring twin design parking lamp, incorporating a shooting star turn signal design.

    NEW INSTRUMENT PANEL

    Centrally positioned and stylish, with improved accuracy in speedometer reading.

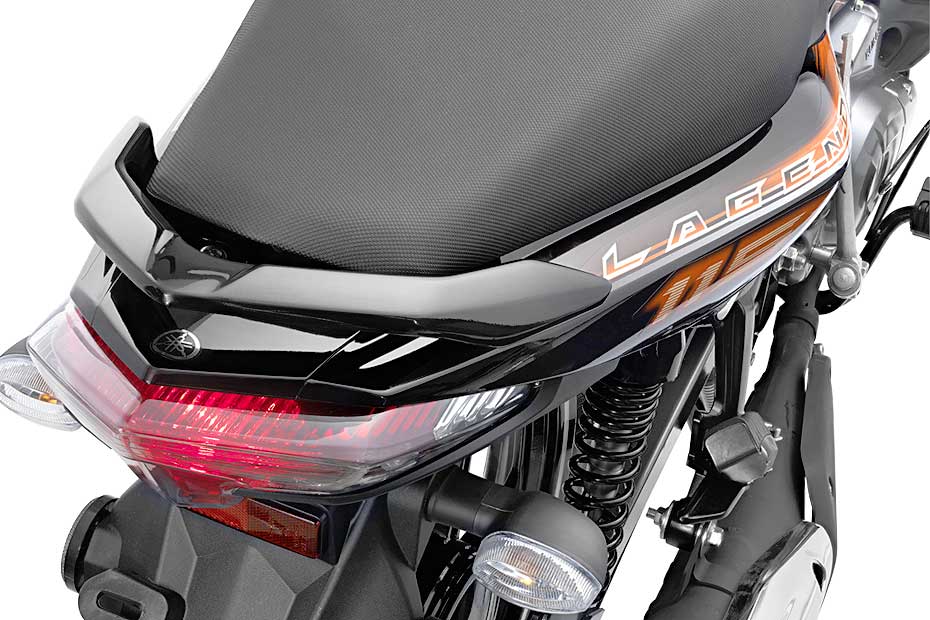

    ERGONOMICALLY DESIGNED GRAB-BAR

    An easy to hold grab-bar for a safe pillion riding.

    NEW REAR LIGHTS

    Light directing elements creating an LED effect on the lens surface.

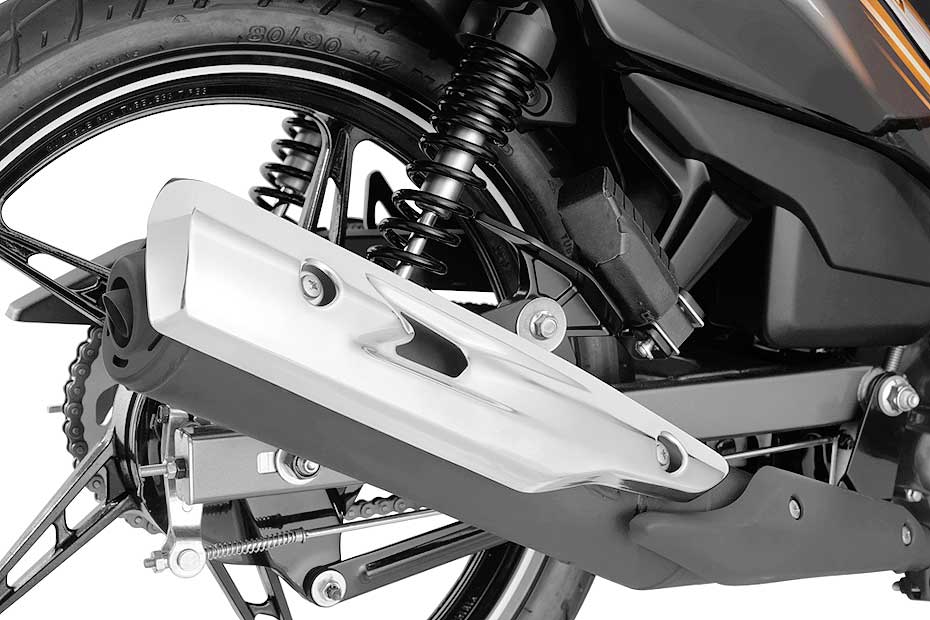

    NEW MUFFLER

    A modern designed muffler that allows consistent air-flow while reducing the engine sound for a comfortable ride.

    NEW DOUBLE-FIN DESIGN

    A new aero-flo feature creates a smooth intake of air allowing your engine to perform efficiently at the optimal temperature.

    New Lamp Cluster

    -Featuring twin design parking lamp, incorporating a shooting star turn signal design

    New Muffler

    - A modern designed muffler that allows consistent air-flow while reducing the engine sound for a comfortable ride.

    New Instrument Panel

    - Centrally positioned and stylish, with improved accuracy in speedometer reading.
    MOTORCYCLE

    SPECIFICATION

    Engine

    Engine TypeAir-cooled, 4-Stroke, SOHC, 2-Valve
    Cylinder arrangementSingle Cylinder
    Displacement113.7 cm3
    Bore X Stroke50.0 x 57.9 mm
    Compression Ratio9.3:1
    Maximum Power7.4kW (7,750rpm)
    Maximum Torque9.9Nm (6,500rpm)
    Lubrication SystemForce-feed lubrication, wet sump
    Starting SystemElectric and Kick
    Fuel SupplyWet
    Engine Oil Capacity1.0 litres
    Fuel Tank Capacity4.05 litres
    CarburetorFuel Injection
    Ignition SystemTCI (Transistor Control Ignition)

    Chasis

    Overall Length1,935 mm
    Overall Width680 mm
    Overall Height1,065 mm
    Seat Height765 mm
    Wheelbase1,240 mm
    Minimum Ground Clearance125 mm
    Wet Weight 100kg

    Transmission

    Transmission TypeManual
    Primary Reduction Ratio2.900 (58/20)
    Secondary Reduction Ratio 3.154 (41/13)
    Gear Ratios2.833 – 1.045
    Clutch Type Wet, centrifugal

    Brake

    Front and Rear Hydraulic Single Disc Brake and Drum Brake

    Suspension

    Front Suspension TypeTelescopic
    Rear Suspension TypeSwingarm

    Newanel

    Front Tyre70/90 – 17 M/C38P
    Rear Tyre80/90 – 17 M/C50P
